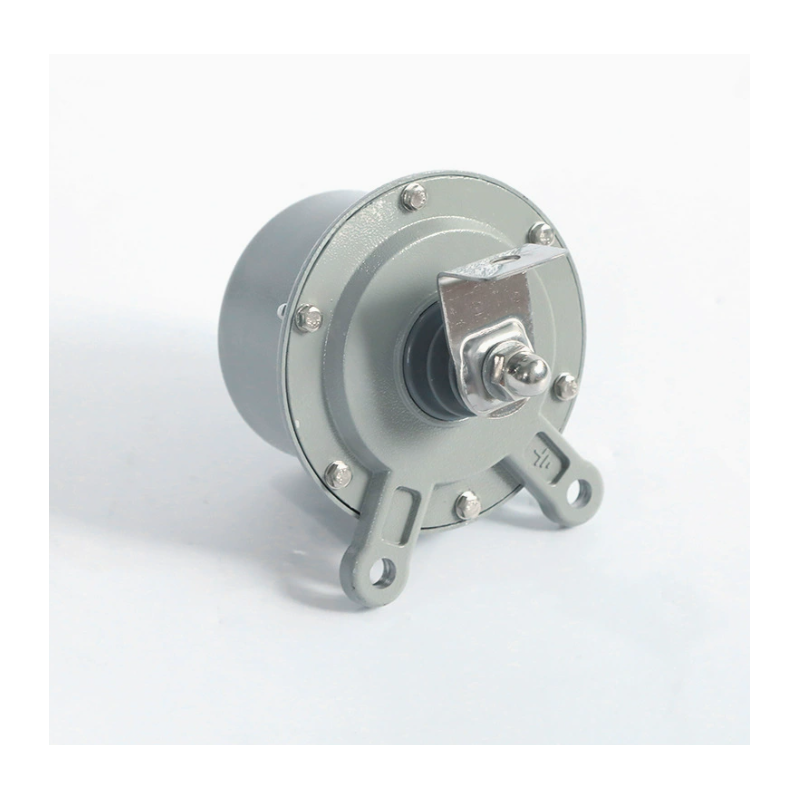

JS-8 High-Voltage Discharge Operation Recorder, 10-220KV, Arrester Counter
Kort beskrywing:
JS-8 10KV-220KV High-Voltage Discharge Operation Recorder Counter is a high-voltage monitoring device connected in series under the surge arrester, specially used to record the number of discharge actions of the arrester. It is compatible with silicon carbide and zinc oxide surge arresters of 10KV to 220KV full voltage level, and is widely used in high-voltage power distribution scenarios such as power stations, substations and transmission lines. Adopting a passive design, the product does not require an external power supply, and the built-in high-performance battery can work stably for three years. It has the characteristics of high sensitivity, accurate counting and reliable sealing. It can real-time record the discharge actions of the arrester caused by lightning strikes and switching overvoltage, clearly present the lightning activity law and the operation status of the arrester, provide accurate data support for equipment operation and maintenance, fault diagnosis and lightning protection optimization, and can predict equipment abnormalities to prevent accident escalation, ensuring the safe and stable operation of the high-voltage power distribution system.
一、产品详细描述（Product Description）
在10KV-220KV高压配电系统中，避雷器是抵御雷击过电压、操作过电压的核心设备，其运行状态直接决定整个配电系统的安全稳定性。但避雷器的放电动作具有瞬时性、隐蔽性，难以通过人工巡检实时捕捉，一旦避雷器出现老化、受潮、性能衰减等问题，无法及时发现，极易引发设备击穿、线路故障等严重后果。JS-8高压放电运行记录仪计数器，专为解决这一痛点设计，作为避雷器的“贴身监测官”，串联在避雷器下部与地之间，全程实时监测避雷器的放电动作，为高压配电系统运维提供精准数据依据。
产品核心采用高速率数据处理单元，搭配软件数字滤波调理电路，抗干扰能力极强，可精准过滤电网杂波，避免误计数、漏计数，计数范围为三位000，能清晰累计避雷器的每一次放电动作，无论是雷击引发的大气过电压放电，还是设备操作产生的操作过电压放电，都能准确捕捉记录。其工作原理清晰可靠：当雷电流经过避雷器进入计数器时，电流一部分直接入地，另一部分给内部电容器充电，冲击电流过后，电容器对计数器放电，驱动计数器完成动作计数，整个过程响应迅速、无延迟，确保计数精准度。
JS-8采用分体式结构设计，数据采集单元与数据处理、显示单元相互独立，通过RJ45接口用网线连接，可根据现场安装需求任意拆分，显示单元安装简便，仅需三颗螺丝即可固定在柜体上，适配户内、户外多种安装场景。产品采用密封铝盒封装，高压进线端配备瓷绝缘子，密封性能优良，能有效防潮、防尘、抗漏痕，同时外壳采用高强度材质，具备抗紫外线、耐高低温特性，可在-40℃~+40℃极端环境下长期稳定运行，适配海拔≤4000m的各类高压配电场景，且不适用于有严重腐蚀气体、严重污秽及剧烈震动的环境。
相较于传统放电计数器，本品无需外接电源，无源设计搭配实时省电模式，内置电池更换便捷，大幅降低运维成本；采用STN点阵式液晶显示，读数清晰明了、外观美观，同时支持分相累计显示历史动作次数，便于运维人员快速查阅、分析避雷器运行状况，预判设备寿命，及时排查潜在故障。产品执行GB6261-85等相关标准，各项性能指标均符合国家规范，广泛应用于10KV-220KV电站、变电站、输电线路、工矿企业高压配电系统，与各类避雷器配套使用，是掌握雷电活动规律、监护避雷器寿命、保障高压配电系统安全运行的必备监测设备。
Description
In 10KV-220KV high-voltage power distribution systems, surge arresters are the core equipment to resist lightning overvoltage and switching overvoltage, and their operating status directly determines the safety and stability of the entire power distribution system. However, the discharge actions of surge arresters are instantaneous and concealed, which are difficult to capture in real time through manual inspection. Once the surge arrester has problems such as aging, moisture, and performance attenuation, it cannot be found in time, which is likely to cause serious consequences such as equipment breakdown and line failure. The JS-8 high-voltage discharge operation recorder counter is specially designed to solve this pain point. As a “personal monitor” of the surge arrester, it is connected in series between the lower part of the surge arrester and the ground, and monitors the discharge actions of the surge arrester in real time throughout the whole process, providing accurate data basis for the operation and maintenance of the high-voltage power distribution system.
The core of the product adopts a high-rate data processing unit, combined with a software digital filter conditioning circuit, which has extremely strong anti-interference ability, can accurately filter power grid clutter, avoid false counting and missing counting. The counting range is three digits 000, which can clearly accumulate each discharge action of the surge arrester. Whether it is atmospheric overvoltage discharge caused by lightning strikes or switching overvoltage discharge caused by equipment operation, it can be accurately captured and recorded. Its working principle is clear and reliable: when the lightning current enters the counter through the surge arrester, part of the current directly goes to the ground, and the other part charges the internal capacitor. After the impulse current passes, the capacitor discharges to the counter, driving the counter to complete the action counting. The whole process responds quickly without delay, ensuring counting accuracy.
JS-8 adopts a split structure design, the data acquisition unit is independent of the data processing and display unit, connected by a network cable through an RJ45 interface, which can be split arbitrarily according to on-site installation needs. The display unit is easy to install and can be fixed on the cabinet with only three screws, suitable for various indoor and outdoor installation scenarios. The product is encapsulated in a sealed aluminum box, the high-voltage incoming terminal is equipped with a porcelain insulator, which has excellent sealing performance, can effectively prevent moisture, dust and leakage marks. At the same time, the shell is made of high-strength material, which has UV resistance and high and low temperature resistance, and can operate stably for a long time in extreme environments of -40℃~+40℃, suitable for various high-voltage power distribution scenarios with an altitude of ≤4000m, and is not suitable for environments with severe corrosive gases, severe pollution and severe vibration.
Compared with traditional discharge counters, this product does not require an external power supply. The passive design combined with real-time power-saving mode makes the built-in battery easy to replace, which greatly reduces operation and maintenance costs. It adopts STN dot-matrix liquid crystal display, with clear reading and beautiful appearance. At the same time, it supports phase-by-phase cumulative display of historical action times, which is convenient for operation and maintenance personnel to quickly check and analyze the operation status of the surge arrester, predict equipment life, and timely troubleshoot potential faults. The product implements relevant standards such as GB6261-85, and all performance indicators meet national standards. It is widely used in 10KV-220KV power stations, substations, transmission lines, and high-voltage power distribution systems of industrial and mining enterprises. It is used with various surge arresters, and is an essential monitoring equipment for mastering lightning activity rules, monitoring surge arrester life, and ensuring the safe operation of high-voltage power distribution systems.
二、产品参数表（Product Parameters Table）
|
参数项目
|
具体参数
|
|---|---|
|
产品型号
|
JS-8
|
|
产品类型
|
高压放电运行记录仪计数器、避雷器动作监测仪
|
|
适配电压等级
|
10KV-220KV（三相交流系统）
|
|
适配避雷器类型
|
碳化硅避雷器、氧化锌避雷器、各类阀型避雷器
|
|
标称放电电流
|
10kA（8/20μs，峰值）
|
|
计数电流范围
|
50~10000A（8/20μs，峰值）
|
|
计数范围
|
三位数字（000~999）
|
|
工作方式
|
无源设计，无需外接电源，内置高性能电池
|
|
电池使用寿命
|
≥3年（正常运行状态）
|
|
显示方式
|
STN点阵式液晶显示，分相累计显示
|
|
结构类型
|
分体式结构（数据采集+处理显示单元），RJ45接口连接
|
|
外壳材质
|
密封铝盒+瓷绝缘子+复合绝缘材质
|
|
安装方式
|
法兰式安装，串联在避雷器底座附近，柜内/户外均可（水平/垂直）
|
|
安装孔距
|
85mm
|
|
环境温度范围
|
-40℃ ~ +40℃
|
|
适用海拔
|
≤4000m
|
|
适用频率
|
50Hz/60Hz
|
|
执行标准
|
GB6261-85、IEC相关标准
|
|
整体重量（约）
|
2.0kg
|
Parameters Table
|
Parameter Items
|
Specific Parameters
|
|---|---|
|
Product Model
|
JS-8
|
|
Product Type
|
High-Voltage Discharge Operation Recorder Counter, Arrester Action Monitor
|
|
Applicable Voltage Level
|
10KV-220KV (Three-phase AC system)
|
|
Applicable Arrester Type
|
Silicon carbide surge arrester, zinc oxide surge arrester, various valve-type surge arresters
|
|
Nominal Discharge Current
|
10kA (8/20μs, peak value)
|
|
Counting Current Range
|
50~10000A (8/20μs, peak value)
|
|
Counting Range
|
Three-digit number (000~999)
|
|
Working Mode
|
Passive design, no external power supply required, built-in high-performance battery
|
|
Battery Service Life
|
≥3 years (normal operation status)
|
|
Display Mode
|
STN dot-matrix liquid crystal display, phase-by-phase cumulative display
|
|
Structure Type
|
Split structure (data acquisition + processing and display unit), connected by RJ45 interface
|
|
Housing Material
|
Sealed aluminum box + porcelain insulator + composite insulating material
|
|
Installation Method
|
Flange mounting, connected in series near the arrester base, suitable for indoor/outdoor (horizontal/vertical)
|
|
Mounting Hole Distance
|
85mm
|
|
Ambient Temperature Range
|
-40℃ ~ +40℃
|
|
Applicable Altitude
|
≤4000m
|
|
Applicable Frequency
|
50Hz/60Hz
|
|
Execution Standards
|
GB6261-85, IEC related standards
|
|
Overall Weight (Approx.)
|
2.0kg
|
