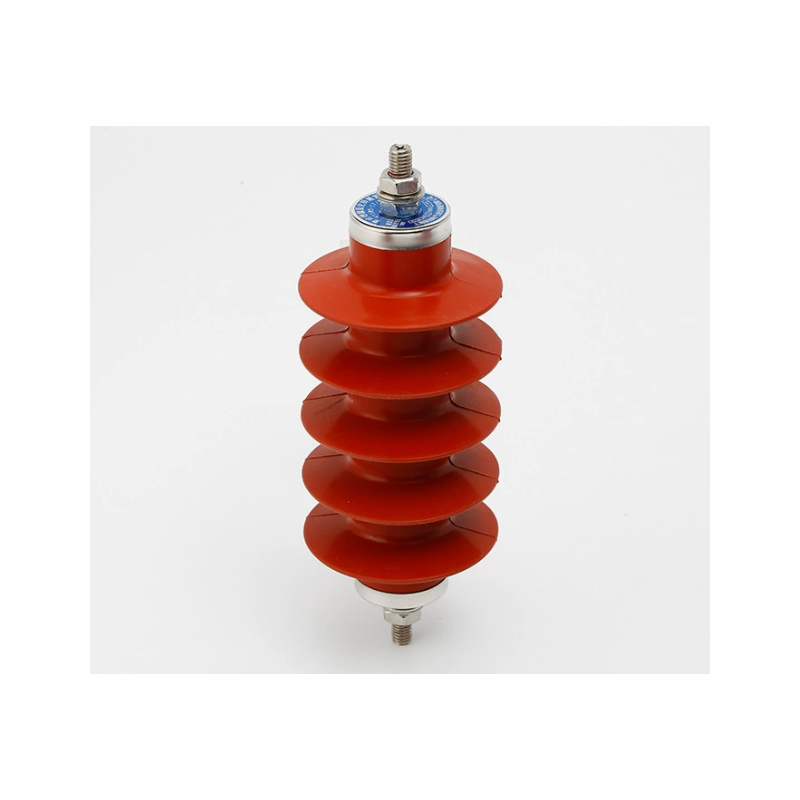

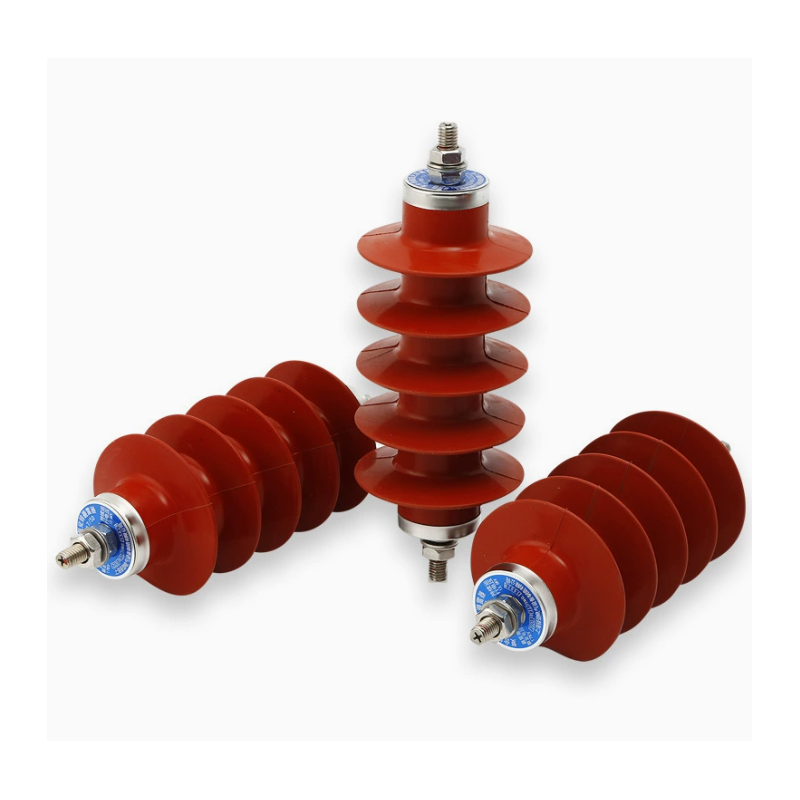

HY5WS-17/50 10kV Outdoor Surge Arrester, Lightning & Overvoltage Protection, Silicone Rubber Anti-Pollution, Power Grid Application
Short Description:
The HY5WS-17/50 is a gapless zinc oxide surge arrester specifically engineered for 10kV outdoor AC power distribution systems. It features premium zinc oxide varistors and an integrally molded composite silicone rubber housing, offering a compact, lightweight design. Under normal operation, the leakage current is at the microampere level. When lightning or switching overvoltage occurs, it conducts instantaneously at the nanosecond level, diverting overvoltage energy to the ground rapidly, with low residual voltage and high current-handling capacity. The silicone rubber sheds have excellent hydrophobicity and migration performance, UV resistance, salt spray resistance and anti-pollution flashover capability, enabling long-term stable operation in extreme temperatures from -40°C to +70°C. It is suitable for distribution transformers, ring main units, cable distribution boxes and overhead line terminals, serving as the core lightning and overvoltage protection equipment for 10kV outdoor distribution networks.
Product Description
在 10kV 户外配电网中，雷击产生的大气过电压与开关操作引发的操作过电压，是导致变压器、电缆终端、柱上开关等核心设备绝缘击穿、烧毁的主要诱因。传统避雷器存在间隙老化、残压偏高、维护频繁等问题，难以适配沿海、高污染、温差大的户外复杂场景。HY5WS-17/50 10kV 户外高压氧化锌避雷器，以无间隙氧化锌阀片为核心，搭配整体模压复合硅橡胶外套，完美解决这些痛点，为户外配电设备提供全天候、免维护的过压防护屏障。
产品采用无间隙结构设计，省去传统间隙的老化与调整环节，响应速度达纳秒级，在过电压出现瞬间即可导通，残压稳定控制在≤50kV，有效避免设备绝缘受损；优质氧化锌阀片配方，通流容量大、抗老化性能强，正常运行时泄漏电流极小，几乎不消耗系统能量。复合硅橡胶外套采用一次整体模压工艺，密封性能极佳，无气隙、无渗漏，伞裙设计增大爬电距离，具备优异的憎水迁移性，即使表面附着灰尘、盐雾，也能保持良好绝缘，无需人工清洗，大幅降低运维成本。
该避雷器安装方式灵活，可垂直 / 水平户外柱上安装，接线简单，上端接 10kV 高压线路，下端必须可靠接地；适配 – 40℃~+70℃温度范围，海拔≤2000m（高海拔可定制），能在沿海盐雾、工业粉尘、强紫外线等恶劣环境下长期稳定运行。广泛应用于 10kV 配电变压器、环网柜、电缆分支箱、架空线路、农村电网改造、工业园区配电系统，执行 GB 11032-2018、IEC 60099-4、JB/T 8952 标准，各项性能指标均符合国家与国际规范。
Description
In 10kV outdoor power distribution networks, atmospheric overvoltage caused by lightning strikes and switching overvoltage induced by switch operations are the primary causes of insulation breakdown and burnout of core equipment such as transformers, cable terminations, and pole-mounted switches. Conventional surge arresters suffer from issues like gap aging, high residual voltage, and frequent maintenance, making them difficult to adapt to complex outdoor scenarios with coastal salt spray, heavy pollution, and large temperature differences. The HY5WS-17/50 10kV outdoor high-voltage zinc oxide surge arrester, with gapless zinc oxide varistors as the core and an integrally molded composite silicone rubber housing, perfectly addresses these pain points, providing an all-weather, maintenance-free overvoltage protection barrier for outdoor power distribution equipment.
The product adopts a gapless structural design, eliminating the aging and adjustment processes of traditional gaps. It has a nanosecond-level response speed, which can conduct immediately when overvoltage occurs. The residual voltage is stably controlled at ≤50kV, effectively preventing damage to equipment insulation. The high-quality zinc oxide varistor formula offers large current-handling capacity and strong anti-aging performance. Under normal operation, the leakage current is extremely small, almost not consuming system energy. The composite silicone rubber housing is manufactured using an integral molding process, featuring excellent sealing performance with no air gaps or leakage. The shed design increases the creepage distance and provides excellent hydrophobic migration performance. Even if dust and salt spray adhere to the surface, it can maintain good insulation without manual cleaning, significantly reducing operation and maintenance costs.
This surge arrester supports flexible installation methods, including vertical/horizontal outdoor pole-mounted installation, with simple wiring: the upper end is connected to the 10kV high-voltage line, and the lower end must be reliably grounded. It is suitable for a temperature range of -40°C to +70°C and an altitude of ≤2000m (customizable for high altitudes), and can operate stably for a long time in harsh environments such as coastal salt spray, industrial dust, and strong ultraviolet rays. It is widely used in 10kV distribution transformers, ring main units, cable distribution boxes, overhead lines, rural power grid renovation, and industrial park power distribution systems. It complies with standards including GB 11032-2018, IEC 60099-4, and JB/T 8952, with all performance indicators meeting national and international specifications.
In 10kV outdoor power distribution networks, atmospheric overvoltage from lightning strikes and switching overvoltage from equipment operations are the leading causes of insulation breakdown and damage to critical assets such as transformers, cable terminations and pole-mounted switches. Traditional arresters often face issues like gap degradation, high residual voltage and intensive maintenance needs, which make them unsuitable for harsh outdoor environments with coastal salt spray, heavy pollution and extreme temperature fluctuations. The HY5WS-17/50 10kV outdoor high-voltage zinc oxide surge arrester, featuring gapless zinc oxide varistors and an integrally-molded composite silicone rubber housing, effectively resolves these challenges, providing an all-weather, low-maintenance overvoltage protection shield for outdoor distribution equipment.
The arrester adopts a gapless design, eliminating the aging and adjustment work associated with conventional gaps, and achieves nanosecond-level response speed, conducting instantaneously once overvoltage occurs. The residual voltage is stably limited to ≤50kV, which effectively protects the insulation of connected equipment. The premium-formulated zinc oxide varistors offer high current-handling capacity and excellent anti-aging performance; under normal operating conditions, the leakage current is extremely low, consuming negligible system energy. The composite silicone rubber housing is produced via one-step integral molding, ensuring superior sealing without air gaps or leakage risks. The skirt design increases the creepage distance and delivers outstanding hydrophobic migration performance—even if dust or salt spray accumulates on the surface, the arrester maintains reliable insulation without the need for manual cleaning, thus greatly reducing operational and maintenance costs.
This arrester supports flexible installation, allowing vertical or horizontal mounting on outdoor poles. Wiring is straightforward: the upper terminal connects to the 10kV high-voltage line, while the lower terminal must be reliably grounded. It can operate stably in temperatures ranging from -40°C to +70°C and at altitudes up to 2000 meters (customized versions are available for high-altitude areas), and performs consistently in harsh outdoor environments such as coastal salt spray zones, industrial dust areas and regions with strong ultraviolet radiation. It is widely applied in 10kV distribution transformers, ring main units, cable distribution boxes, overhead lines, rural power grid upgrades and industrial park distribution systems. It complies with GB 11032-2018, IEC 60099-4 and JB/T 8952 standards, with all performance parameters meeting both national and international requirements.
| 参数项目（中文） | 具体参数 | Parameter Item（English） | Specific Parameter |
|---|---|---|---|
| 产品型号 | HY5WS-17/50 | Product Model | HY5WS-17/50 |
| 系统标称电压 | 10kV（三相交流 50/60Hz） | System Nominal Voltage | 10kV (Three-phase AC 50/60Hz) |
| 额定电压 | 17kV（有效值） | Rated Voltage | 17kV (RMS) |
| 持续运行电压 | 13.6kV | Continuous Operating Voltage | 13.6kV |
| 标称放电电流 | 5kA（8/20μs 波形） | Nominal Discharge Current | 5kA (8/20μs waveform) |
| 雷电冲击残压 | ≤50kV（5kA 下峰值） | Lightning Impulse Residual Voltage | ≤50kV (Peak at 5kA) |
| 2mA 直流参考电压 | ≥24.0kV | DC Reference Voltage (2mA) | ≥24.0kV |
| 结构类型 | 无间隙氧化锌阀片，一体式复合外套 | Structure Type | Gapless ZnO Varistors, Integral Composite Housing |
| 外壳材质 | 复合硅橡胶 | Housing Material | Composite Silicone Rubber |
| 安装方式 | 户外柱上垂直 / 水平安装 | Installation Method | Outdoor pole-mounted (vertical/horizontal) |
| 环境温度 | -40℃~+70℃ | Ambient Temperature Range | -40°C ~ +70°C |
| 适用海拔 | ≤2000m（高海拔可定制） | Applicable Altitude | ≤2000m (Customizable for high altitude) |
| 执行标准 | GB 11032-2018，IEC 60099-4，JB/T 8952 | Compliance Standards | GB 11032-2018, IEC 60099-4, JB/T 8952 |
