bat、型号解读（Model Interpretation）

• GW9：户外高压隔离开关，9为设计序号；24：额定电压24kV（适配20/22/24kV系统）；G：改进型/防污型；630A：额定电流630A。
• GW9= Outdoor HV Disconnector, 9 = Design No.; 24 = Rated Voltage 24kV (suitable for 20/22/24kV systems); G = Improved/Anti-pollution Type; 630A = Rated Current 630A.

bi、产品摘要（Product Summary）

GW9-24G/630A是专为20kV/22kV/24kV户外交流配电系统设计的单极手动隔离开关，适配全球中压配网场景（亚洲、Afrika、拉美、中东等）。产品采用双柱瓷质/复合硅橡胶绝缘、双刀片触头+自锁结构，可在有电压无负载条件下分合电路，提供可见断点保障检修安全；具备防污、耐候、mantentze- doakoa特性，适配-40℃~+40℃、海拔≤3000m环境，广泛用于柱上变压器、Eraztun unitate nagusia、aireko lerroak、变电站的隔离与分段，是20-24kV户外配网必备设备。

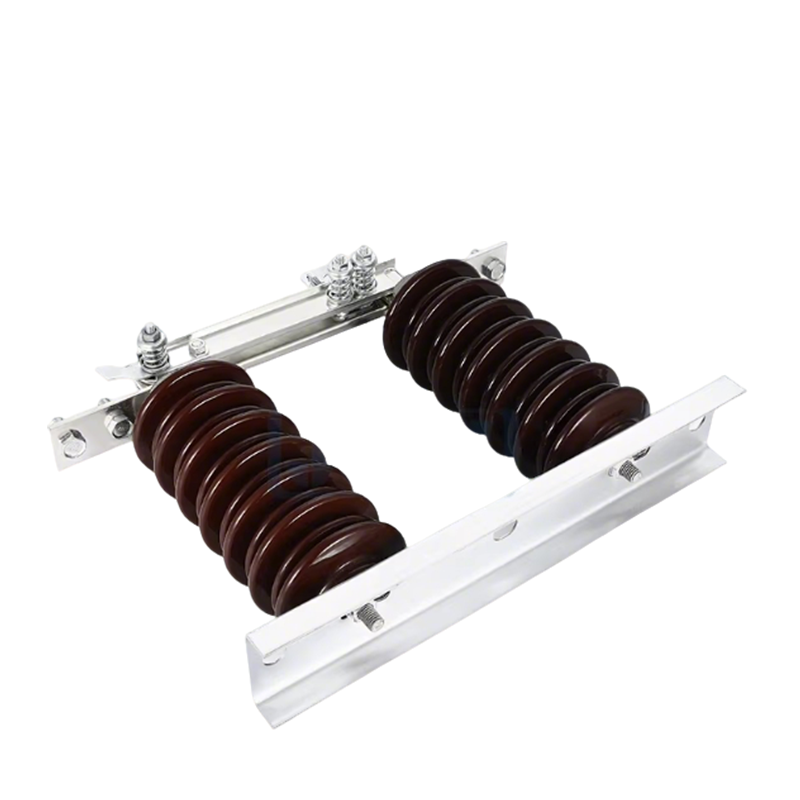

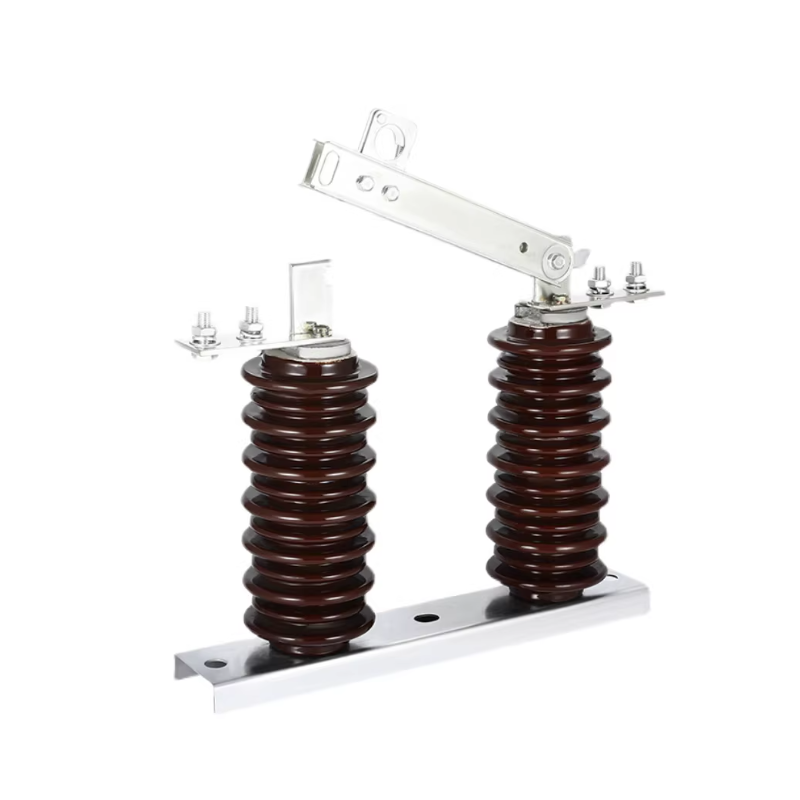

The GW9-24G/630A is a single-pole manual disconnector switch designed for 20kV/22kV/24kV outdoor AC distribution systems, suitable for global medium-voltage distribution scenarios (Asia, Afrika, Latin America, Middle East, etab.). It features double-post porcelain/composite silicone rubber insulation, double-blade contacts with self-locking mechanism, enabling circuit switching under voltage but no-load conditions, providing a visible break point for safe maintenance. With anti-pollution, weather-resistant, mantentzerik gabe properties, it operates reliably in -40℃~+40℃ and altitude ≤3000m, widely used for isolation and sectionalization of pole-mounted transformers, eraztun-unitate nagusiak, aireko lerroak, azpiestazioak, an essential equipment for 20-24kV outdoor distribution networks。

三、Produktuaren deskribapena

在20kV/22kV/24kV户外配电系统中，隔离开关是实现电气隔离、线路分段、设备检修的核心设备，必须提供清晰可见断点、可靠绝缘与稳定操作。传统隔离开关存在污闪风险、操作繁琐、维护量大等问题，难以适配全球不同气候（高温、高湿、gatz spray、重污秽）与地域环境。

GW9-24G/630A户外高压隔离开关针对性解决以上痛点：

1. 核心功能：仅在有电压无负载条件下分合电路，可分合≤2A的空载容性/感性电流，严禁带负荷操作；合闸后自动自锁，防止误分，保障运维安全。
2. 结构优势：单极双柱结构，双刀片触头+压缩弹簧确保接触压力≥120N、接触电阻≤150μΩ，导电稳定；支柱绝缘子可选瓷质（防污型）/复合硅橡胶，Istripu distantzia egokia，抗污闪、耐盐雾、UV erresistentea。
3. 操作便捷：手动绝缘钩棒操作，力矩小、Mugimendu malguak，无需电源，适配全球无电/偏远地区；安装方式灵活，柱上垂直/水平安装，Kableatu sinplea。
4. 环境适配：工作温度**-40℃~+40℃**，海拔≤3000m，抗震≤8级，egokitzapena沿海盐雾、工业污秽、goi-ordokia、热带/寒带等全球多地域场景；热镀锌底座+不锈钢固件，耐腐蚀、mantentze- doakoa。
5. Aplikazio-eszenatokiak：广泛用于20-24kV户外配网，包括柱上变压器前端、架空线路分段、Eraztun unitate nagusia、变电站母线隔离、Landa sare elektrikoaren eraldaketa、工业园区配电，符合GB 1985、IEC 62271-102estandarra。

Deskribapena

In 20kV/22kV/24kV outdoor distribution systems, disconnector switches are core equipment for electrical isolation, line sectionalization, and equipment maintenance, requiring clear visible break points, reliable insulation, and stable operation. Conventional disconnectors face issues like pollution flashover risk, cumbersome operation, and high maintenance, making them unsuitable for global diverse climates (high temperature, high humidity, gatz spray, kutsadura handia) and regional environments.

GW9-24G/630A Outdoor High Voltage Disconnector Switch addresses these pain points:

1. Core Function: Switches circuits only under voltage but no-loadconditions, capable of switching no-load capacitive/inductive currents ≤2A; strictly prohibited from load operation. Self-locks automatically after closing to prevent accidental opening, ensuring maintenance safety.
2. Structural Advantages: Single-pole double-post structure, double-blade contacts with compression springsensure contact pressure ≥120N and contact resistance ≤150μΩ for stable conduction. Post insulators available in porcelain (anti-pollution)/composite silicone rubber, with sufficient creepage distance, anti-pollution flashover, gatz spray erresistentzia, and UV resistance.
3. Easy Operation: Manual operation with insulated hook stick, low torque, flexible action, no power supply required, suitable for global off-grid/remote areas. Flexible installation: pole-mounted vertical/horizontal, simple wiring.
4. Environmental Adaptability : Operating temperature -40℃~+40℃, altitude ≤3000m, seismic resistance ≤8 degrees, suitable for kostaldeko gatz spray, industrial pollution, plateau, tropical/cold zonesand other global regional scenarios. Hot-dip galvanized base + stainless steel fasteners, corrosion-resistant, mantentzerik gabe.
5. Aplikazio-eszenatokiak: Widely used in 20-24kV outdoor distribution networks, including pole-mounted transformer front ends, overhead line sectionalization, eraztun-unitate nagusiak, substation busbar isolation, rural grid renovation, industrial park distribution, compliant with GB 1985, IEC 62271-102estandarrak。

五、产品参数表Parameters Table
